Creative Piping Solutions specializes in the manufacturing of forged pipe fittings in both threaded and socket weld types, adhering to rigorous industry standards including ASME B16.11, MSS-SP-79, MSS-SP-83, and API 598. Our fittings are available in nominal sizes from 1/8 inch to 4 inches, covering diverse industrial applications that require high-pressure connections with seamless performance. Crafted from materials such as carbon steel, stainless steel, and various alloys, our forged fittings provide high strength and corrosion resistance. Each product undergoes stringent quality control processes, including precise dimensional and material testing, to meet the exacting requirements of high-stakes industries like oil and gas, petrochemical, and power generation.

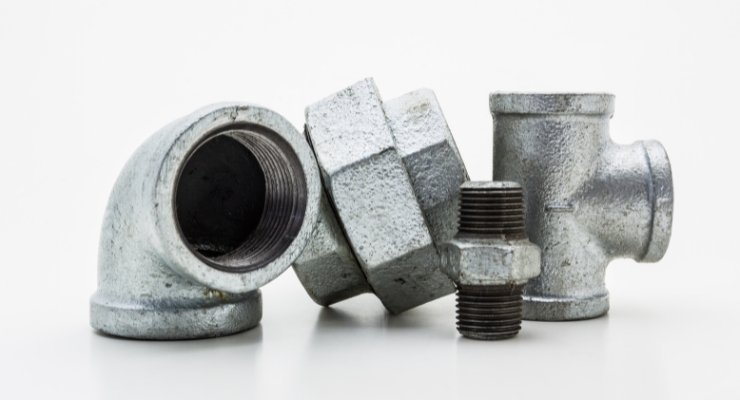

The variety of forged fittings we produce includes elbows, tees, couplings, unions, caps, and reducing inserts, ensuring compatibility with demanding pipeline setups. Our fittings are engineered to withstand high-temperature and high-pressure conditions, thanks to advanced manufacturing techniques and heat treatment processes such as normalizing, quenching, and tempering. Creative Piping Solutions' commitment to excellence in forged fittings manufacturing guarantees not only durability but also a secure, leak-proof connection in critical industrial systems.

Forged Fittings Specifications

Specification Description
Size Range 1/8" to 4" Nominal Pipe Size (NPS)
Pressure Class Class 2000, 3000, 6000, 9000
Manufacturing Standards
  • ASME B16.11 (for forged fittings)
  • MSS-SP-79 (for socket welding fittings)
  • MSS-SP-83 (for threaded fittings)
  • ASTM standards for material grades (e.g., ASTM A182, A105, A350)
End Preparation
  • Threaded Ends as per ASME B1.20.1
  • Socket Weld Ends as per ASME B16.11
Dimensional Tolerances
  • Outside Diameter (OD): ±1% for NPS > 1.5” or ±0.06 inches for NPS ≤ 1.5”
  • Center-to-End (Elbows and Tees): ±3 mm
  • Wall Thickness: As per pressure class requirements
Surface Finish Mill Finish, Sand-Blasted, Pickled and Passivated for Stainless Steel
Heat Treatment Annealed, Normalized, Quenched, and Tempered, as per material and application requirements
Testing and Quality Control
  • Hydrostatic Testing
  • Radiographic (X-ray) Testing for weld integrity
  • Ultrasonic Testing
  • Dye Penetrant Testing for surface cracks
  • Hardness Testing
  • PMI (Positive Material Identification)
  • Dimensional and Visual Inspection
Certifications
  • Mill Test Certificate (MTC)
  • Third-Party Inspection Certificate
  • Material Test Reports
  • Non-Destructive Testing (NDT) Reports
Applications
  • Industries: Oil & Gas, Petrochemical, Power Generation, Chemical, Water Treatment, Pharmaceutical
  • Uses: High-pressure and high-temperature applications, corrosive environments, sanitary applications, structural applications

Types of Forged Fittings

Elbow

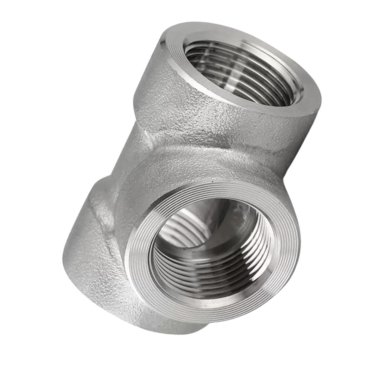

Tees

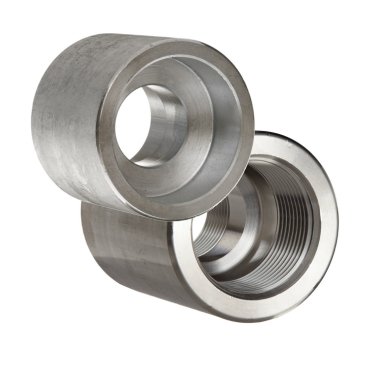

Couplings

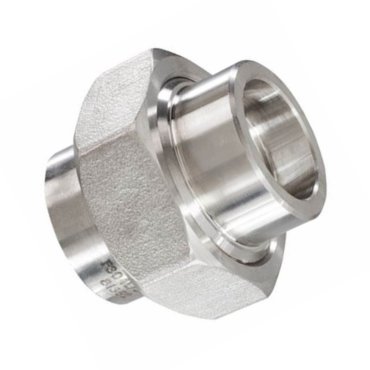

Unions

Caps

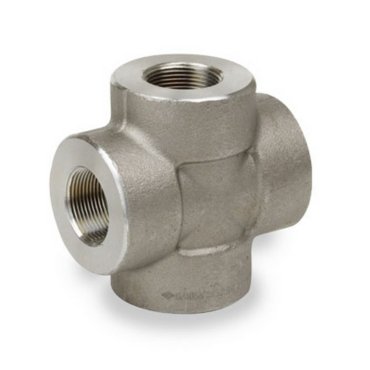

Crosses

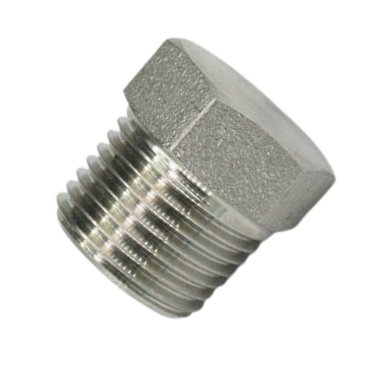

Plugs

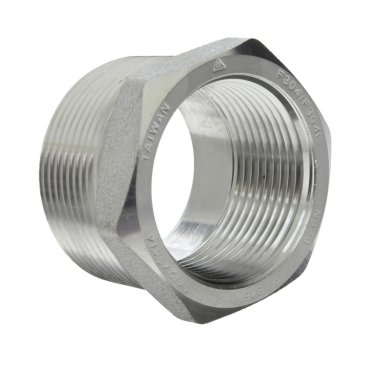

Bushings

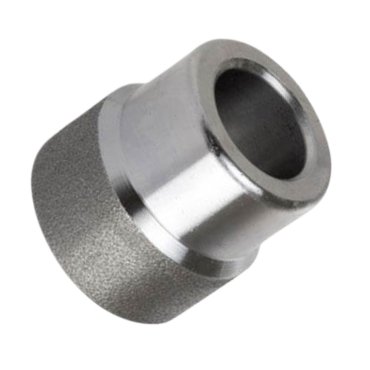

Inserts

Materials & Grades

  • Stainless Steel

  • Carbon Steel

  • Alloy Steel

  • High Nickel Alloys

  • Duplex And Super Duplex Steel

Trade Name Grade UNS # Forged Fittings Specification
Stainless Steel 304 S30400 A182 / SA182
Stainless Steel 304L S30403 A182 / SA182
Stainless Steel 304H S30409 A182 / SA182
Stainless Steel 316 S31600 A182 / SA182
Stainless Steel 316L S31603 A182 / SA182
Stainless Steel 316H S31609 A182 / SA182
Stainless Steel 321 S32100 A182 / SA182
Stainless Steel 321H S32109 A182 / SA182
Stainless Steel 347 S34700 A182 / SA182
Stainless Steel 347H S34709 A182 / SA182
Stainless Steel 317L S31703 A182 / SA182

Notes:

  • Stainless Steel Forged Fittings A/SA182 are available in sizes from 1/8" to 4" as per shapes and dimensional requirements of ASME B16.11.
  • Threaded Fittings are offered in Pressure Classes 2000#, 3000#, and 6000#.
  • Socketweld Fittings are offered in Pressure Classes 3000#, 6000#, and 9000#.
  • Miscellaneous fittings such as pipe nipples, swages, and branch connection outlets (olets) are available.
  • Special Fittings with non-standard dimensions, threads, or counterbores can be provided as per the purchaser's requirements.
Trade Name Grade UNS # Forged Fittings Specification
Carbon Steel ASTM A105 K03504 A105 / SA105
Carbon Steel ASTM A350 LF2 K03011 A350 / SA350
Carbon Steel ASTM A350 LF3 K32025 A350 / SA350
Low Temperature Carbon Steel A350 LF1 K03003 A350 / SA350
Low Temperature Carbon Steel A350 LF2 K03011 A350 / SA350
High Yield Carbon Steel A694 F42 - A694 / SA694
High Yield Carbon Steel A694 F46 - A694 / SA694
High Yield Carbon Steel A694 F52 - A694 / SA694
High Yield Carbon Steel A694 F56 - A694 / SA694
High Yield Carbon Steel A694 F60 - A694 / SA694
High Yield Carbon Steel A694 F65 - A694 / SA694
High Yield Carbon Steel A694 F70 - A694 / SA694

Notes:

  • Carbon Steel Forged Fittings are available in sizes from 1/8" to 4" as per shapes and dimensional requirements of ASME B16.11.
  • Threaded Fittings are offered in Pressure Classes 2000#, 3000#, and 6000#.
  • Socketweld Fittings are offered in Pressure Classes 3000#, 6000#, and 9000#.
  • Miscellaneous fittings such as pipe nipples, swages, and branch connection outlets (olets) are available.
  • Special Fittings with non-standard dimensions, threads, or counterbores can be provided as per the purchaser's requirements.
Trade Name Grade UNS # Forged Fittings Specification
Alloy Steel A182 F1 K12822 A182 / SA182
Alloy Steel A182 F5 K41545 A182 / SA182
Alloy Steel A182 F9 K90941 A182 / SA182
Alloy Steel A182 F11 K11711 A182 / SA182
Alloy Steel A182 F12 K11562 A182 / SA182
Alloy Steel A182 F22 K21590 A182 / SA182
Alloy Steel A182 F91 K90901 A182 / SA182
Alloy Steel A182 F92 K92460 A182 / SA182

Notes:

  • Alloy Steel Forged Fittings A/SA182 are available in sizes from 1/8" to 4" as per shapes and dimensional requirements of ASME B16.11.
  • Threaded Fittings are offered in Pressure Classes 2000#, 3000#, and 6000#.
  • Socketweld Fittings are offered in Pressure Classes 3000#, 6000#, and 9000#.
  • Miscellaneous fittings such as pipe nipples, swages, and branch connection outlets (olets) are available.
  • Special Fittings with non-standard dimensions, threads, or counterbores can be provided as per the purchaser's requirements.
Trade Name Grade UNS # Forged Fittings Specification
Nickel Alloy Inconel 600 N06600 B564
Nickel Alloy Inconel 625 N06625 B564
Nickel Alloy Inconel 718 N07718 B564
Nickel Alloy Monel 400 N04400 B564
Nickel Alloy Monel K500 N05500 B564
Nickel Alloy Hastelloy C276 N10276 B564
Nickel Alloy Hastelloy C22 N06022 B564
Nickel Alloy Alloy 20 N08020 B564

Notes:

  • High Nickel Alloy Forged Fittings per ASTM B564 are available in sizes from 1/8" to 4" as per shapes and dimensional requirements of ASME B16.11.
  • Threaded Fittings are offered in Pressure Classes 2000#, 3000#, and 6000#.
  • Socketweld Fittings are offered in Pressure Classes 3000#, 6000#, and 9000#.
  • Miscellaneous fittings such as pipe nipples, swages, and branch connection outlets (olets) are available.
  • Special Fittings with non-standard dimensions, threads, or counterbores can be provided as per the purchaser's requirements.
Trade Name Grade UNS # Forged Fittings Specification
Duplex Steel 2205 S32205 / S31803 A182 / SA182
Super Duplex Steel 2507 S32750 / S32760 A182 / SA182
Duplex Steel 2304 S32304 A182 / SA182
Super Duplex Steel 255 S32550 A182 / SA182
Duplex Steel 2101 S32101 A182 / SA182

Notes:

  • Duplex and Super Duplex Steel Forged Fittings per ASTM A182 are available in sizes from 1/8" to 4" as per shapes and dimensional requirements of ASME B16.11.
  • Threaded Fittings are offered in Pressure Classes 2000#, 3000#, and 6000#.
  • Socketweld Fittings are offered in Pressure Classes 3000#, 6000#, and 9000#.
  • Miscellaneous fittings such as pipe nipples, swages, and branch connection outlets (olets) are available.
  • Special Fittings with non-standard dimensions, threads, or counterbores can be provided as per the purchaser's requirements.
