At Creative Piping Solutions, we specialize in manufacturing and supplying premium-quality stainless steel pipes that cater to a wide range of industrial and commercial applications. Our stainless steel pipes are renowned for their exceptional durability, corrosion resistance, and aesthetic appeal. We offer a variety of types, including round, square, rectangular, and slotted pipes, ensuring that we meet the diverse needs of our clients. These pipes are available in various surface finishes such as Mill Finish, Brushed Finish, Electro Polishing (Grit 300-500), Mirror Finish, Satin Finish, and custom finishes tailored to customers' specific requirements.

Our stainless steel pipes are manufactured in compliance with ASTM A312 standards and are available in material grades such as TP202, TP304/304L, and TP316/316L. With a size range of 1/8" NB to 24" NB, thickness options from 0.5mm to 20.0mm, and lengths from 1 meter to 12 meters, we provide pipes that cater to a wide array of project demands. Whether for structural applications, fluid transportation, or decorative purposes, our stainless steel pipes deliver unparalleled performance and precision.

Pipes Specifications

Specification Description
Type - Round Pipes
- Square Pipes
- Rectangle Pipes
- Slotted Pipes
Surface Finish - Mill Finish: Standard as manufactured
- Brushed Finish: Fine grain texture with a uniform appearance
- Electro Polishing: High gloss, corrosion-resistant finish (Grit 300-500)
- Mirror Finish: Highly reflective polished surface
- Satin Finish: Smooth, non-reflective finish
- Custom Finishes: Tailored to meet specific customer needs
Material Grades - ASTM A312 TP202
- ASTM A312 TP304/304L
- ASTM A312 TP316/316L
Size Range 1/8" NB to 24" NB
Schedule/Thickness 0.5 mm to 20.0 mm
Length 1 Meter to 12 Meters (Custom lengths available on request)
End Preparation - Plain Ends (PE)
- Beveled Ends (BE) as per ASME B16.25
- Threaded Ends (TE) as per ANSI/ASME B1.20.1
- Custom end preparations on request
Standards - ASTM A312 (Seamless and Welded Austenitic Stainless Steel Pipes)
- ASME B36.19 (Dimensions for Stainless Steel Pipes)
- ASME B36.10 (Welded and Seamless Wrought Steel Pipes)
Applications - Petrochemical and Chemical Industries
- Oil and Gas Transportation
- Water Treatment Plants
- Food and Beverage Processing
- Pharmaceutical Manufacturing
- Architectural and Structural Applications
Testing and Quality Control - Hydrostatic Testing
- Radiographic Testing (RT)
- Dye Penetrant Testing (DPT)
- Ultrasonic Testing (UT)
- Positive Material Identification (PMI)
- Dimensional and Visual Inspection
Certifications - Mill Test Certificate (MTC)
- Third-Party Inspection Certificate
- Non-Destructive Testing (NDT) Reports
- Compliance with international standards

Types of Stainless Steel Pipes

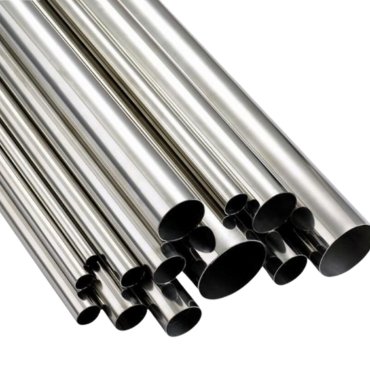

Round Pipes

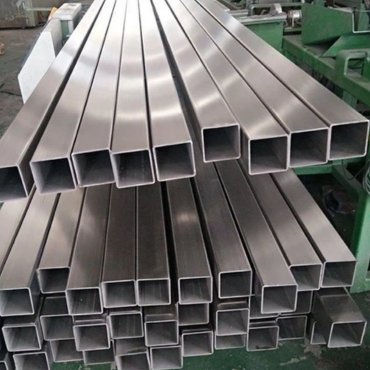

Square Pipes

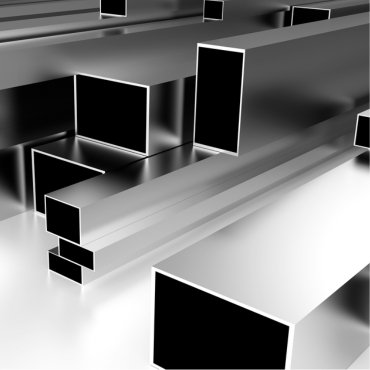

Rectangle Pipes

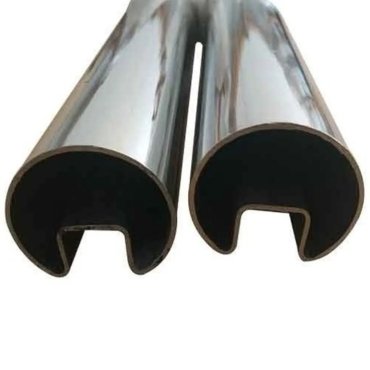

Slotted Pipes

Stainless Steel Pipes

  • Equivalent Grades

  • Mechanical Properties

  • Chemical Composition

Standard Grade UNS # Equivalent Standards
ASTM A312 TP304 S30400 EN 1.4301 / DIN X5CrNi18-10
ASTM A312 TP304L S30403 EN 1.4307 / DIN X2CrNi18-9
ASTM A312 TP316 S31600 EN 1.4401 / DIN X5CrNiMo17-12-2
ASTM A312 TP316L S31603 EN 1.4404 / DIN X2CrNiMo17-12-2
ASTM A312 TP321 S32100 EN 1.4541 / DIN X6CrNiTi18-10
ASTM A312 TP321H S32109 EN 1.4878 / DIN X10CrNiTi18-10
ASTM A312 TP347 S34700 EN 1.4550 / DIN X6CrNiNb18-10
ASTM A312 TP347H S34709 EN 1.4961 / DIN X7CrNiNb18-10
ASTM A312 TP202 S20200 EN 1.4373 / DIN X12CrMnNiN17-7-5
ASTM A312 TP904L N08904 EN 1.4539 / DIN X1NiCrMoCu25-20-5
Grade Ultimate Tensile Strength (MPa) Yield Strength (0.2% Offset, MPa) Elongation (%) Hardness (Brinell, HB)
TP304 515 - 750 205 35 ≤ 201
TP304L 485 - 700 170 35 ≤ 183
TP316 515 - 750 205 35 ≤ 217
TP316L 485 - 700 170 35 ≤ 187
TP321 515 - 750 205 35 ≤ 217
TP347 515 - 750 205 35 ≤ 217
TP202 515 - 740 275 40 ≤ 241
TP904L 490 - 690 220 35 ≤ 210
Grade Carbon (C, %) Chromium (Cr, %) Nickel (Ni, %) Manganese (Mn, %) Silicon (Si, %) Phosphorus (P, %) Sulfur (S, %) Molybdenum (Mo, %) Copper (Cu, %) Nitrogen (N, %)
TP304 ≤ 0.08 18.0 - 20.0 8.0 - 10.5 ≤ 2.0 ≤ 0.75 ≤ 0.045 ≤ 0.03 - - -
TP304L ≤ 0.03 18.0 - 20.0 8.0 - 12.0 ≤ 2.0 ≤ 0.75 ≤ 0.045 ≤ 0.03 - - -
TP316 ≤ 0.08 16.0 - 18.0 10.0 - 14.0 ≤ 2.0 ≤ 0.75 ≤ 0.045 ≤ 0.03 2.0 - 3.0 - -
TP316L ≤ 0.03 16.0 - 18.0 10.0 - 14.0 ≤ 2.0 ≤ 0.75 ≤ 0.045 ≤ 0.03 2.0 - 3.0 - -
TP321 ≤ 0.08 17.0 - 19.0 9.0 - 12.0 ≤ 2.0 ≤ 0.75 ≤ 0.045 ≤ 0.03 - - ≤ 0.10
TP347 ≤ 0.08 17.0 - 19.0 9.0 - 13.0 ≤ 2.0 ≤ 0.75 ≤ 0.045 ≤ 0.03 - - ≤ 0.10
TP202 ≤ 0.15 17.0 - 19.0 4.0 - 6.0 7.5 - 10.0 ≤ 0.75 ≤ 0.060 ≤ 0.03 - - ≤ 0.25
TP904L ≤ 0.02 19.0 - 23.0 23.0 - 28.0 ≤ 2.0 ≤ 1.0 ≤ 0.045 ≤ 0.035 4.0 - 5.0 1.0 - 2.0 -

Application Industries

  • Oil and Gas Industry
  • Petrochemical Industry
  • Power Generation
  • Chemical Industry
  • Water Treatment and Desalination
  • Pharmaceutical Industry
  • Food and Beverage Industry
  • Mining and Mineral Processing
  • Shipbuilding and Marine Applications
  • Aerospace and Defense
  • Construction and Infrastructure
  • Automotive and Transportation
